Work shop manual. 216 pages covers 1963 to 1983 650 & 750 models.

Boyer MKIV analog ignition. Use stock coils, but 2, 6 volt coils preferred.

Boyer Micro Digital ignition. Built in micro processor improves performance. 5.0K ohm resistor plug caps req'd. Coils as above.

Boyer Micro Power Digital ignition. The latest kit. Hottest spark. Includes mini coil and plug wires.

Stator 2 wire single phase 10 Amp x 12V = 120 Watt.

High output stator 2 wire single phase 16 Amp x 12V = 192Watt.

Alternator wire grommet inside primary

 Alternator wire grommet, external primary

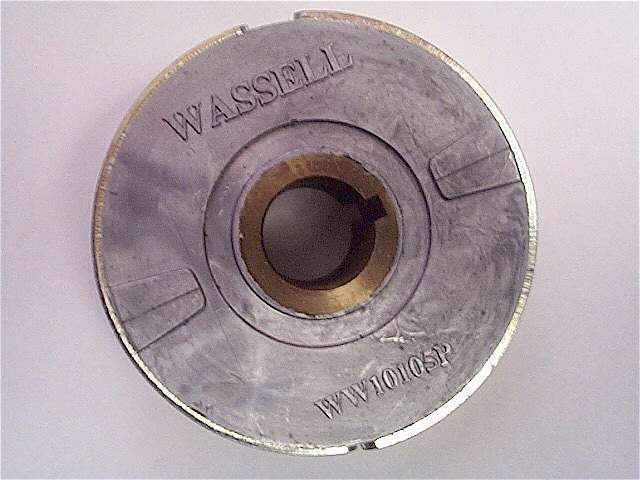

Alternator rotor

click image for larger pic

12V Single phase  regulator rectifier.  For all single phase 2 and 3 wire stators up to  240W. 69x67x28 mm

Wassell 12V Single phase  regulator rectifier.

12V Three  phase  regulator rectifier. 79x68x28mm

Boyer Power Box for single phase alternators. 12 Volts 180 watts + or - ground. Eliminates rectifier, diode, and battery if desired. Simple 4 wire installation

Same as PBOX00108 except added feature of lighting delay circuit. Allows all power to flow to ignition at start up.

Boyer Power Box for 3 phase 3 wire alternators 12 Volts 280 Watts

6 Volt coil

Oriental PVL style

12 Volt coil

Oriental

Coil mounting grommet 650/750

Boyer dual outlet digital coil for Micro Power Digital ignitions

Boyer HT clip and boot for mini coils. sold each

Main wiring harness 1979-80 models

Main wiring harness 1976-78 models

Main wiring harness 1973-74 models

Head lamp wiring harness 71-72 models

Main wiring harness 1971-72 models

Rear sub- harness 73-78 positive ground

Rear sub- harness 78 and up negative ground

Contact breaker (points) wiring harness

Grommet, contact breaker (points) wiring harness

Wiring grommet, rear fender, etc *

Condenser all models

Japanese quality

Ignition contact points 1968-72 models. Bike takes 2 sets.

Japanese quality

Ignition contact points 1973-78 models. Bike takes 2 sets.

Japanese quality

Replica Lucas horn 8H 12 volt

Chromed standard vibrator horn 105Db 3 5/8 " Diameter. 12V 2.5 Amp

Mini horn for compact fitment 2.5 " Diameter. 12V 1.5 Amp

Ignition switch with keys, 71-73 models with switch in RH side cover, 79 D & E Models. Also replaces 39784, 30552

Ignition switch body, no keys, also replaces 31899

Ignition lock and key set fits all Lucas switches

Ignition switch rubber cover 1979 & 1980 models

Ignition switch  cover 1981 & later models

Ignition switch rubber boot

Stop light switch

Stop light switch mounting screw. Also replaces 60-3550

Washer for stop light switch mounting screw

Universal stop light switch

Switch console lever. 3 position OFF/ON/OFF

Toggle switch 3 position

$19.00 ea

Switch gear LH, all 1971-1975 models, reproduction

Switch gear RH, all 1971-1973 models with drum brake, reproduction

Replica Wipac Ducon switch for Hi Lo beam and horn. Slides over the end of the bars and is secured with a grub screw. Wires are about 19 inches.

$14.00 ea

Replica Wipac Tricon switch for Hi Lo beam , kill button and horn. Slides over the end of the bars and is secured with a grub screw. Wires are about 19 inches.

Oil pressure switch up to 1973 650 & 750  models, tapered thread

Oil pressure switch 1974 and later models

Rubber cover oil pressure switch

Spark plug wire set. 24 " long  7mm diameter, non-resistor. USA made.

Spark plug wire set. 24 " long  7mm diameter, Silicone resistor core. Use with Boyer Digital systems.

Resistor spark plug cap. 5K Ohm

NGK spark plug. Champion equivalent N5, N6

NGK spark plug. Champion equivalent N4

NGK spark plug. Champion equivalent N3

Rubber cable ties

Fuse holder for plug in style fuses

Fuse for above holder. 20 Amp

Glass fuses. 5 pack. 30 mm long. 20 AMP North American rating (approx. 35 AMP UK rating)

Single wire bullet connector

Double wire bullet connector. Common wire connection

Crimp type bullet connectors

Solder type bullet connectors.
