Work shop manual. 216 pages covers 1963 to 1983 650 & 750 models.

Single cable throttle with friction adjustment. Replica Doherty 71. Use 96 top cable.

Single cable throttle. Amal type 364. OEM 60-7014. Use 496 top cable.

Dual cable throttle assembly chrome w/ aluminum sleeve. Replica Doherty 77

Ribbed cushion grips

Replica grips of the Amal brand found on many  bikes

Cushion foam grips with bright chrome ends. Overall length 5 3/4 ". Inside length 5 3/8". Fit 7/8" bars.

Single cable throttle with friction adjustment and GT style grip installed

Air Lever Right Hand

$18.90 ea

Handlebar 66-72 style

large image 1      large image 2

Handlebar, 1973 & later style, 8 inch rise

Clip on bars. Chrome plated steel. 8 inch length

"P" clamp. Best quality. sold each

Handle bar mount shim

Handle bar bushing

Cup washer, handle bar mount

Handle bar rubber washer

Spacer, handle bar mount

Concave washer, handle bar mount

Spacer, handle bar bolt

Chrome handlebar mounting bolts. Thread into "P" clamps. Sold in pairs

Chrome universal mirror clamp. Allows the use of any 10mm threaded mirror.

Black bar end mirror

Chrome bar end mirror

Handlebar wiring clip

Cable junction block for 1 into 2 cables

Twist grip cable stop

Throttle cable, top from lever to junction, 23" for low bars 71-75 650,750 using  cable stop W81607 seen below. Also choke cable for 68-72 T120.  Triumph #60-1818.

Throttle cable, top from lever to junction,25"outer . 1976 and later without  cable stopW81607

Throttle cable, lower, from junction to carb, 18". 2 req'd on 73-78 T140

Choke cable, lower, from junction to carb, 18". 2 req'd on 68-72 T120.  Triumph #60-3486

Choke cable, 1968 to 1973 Tiger 650, 39". Triumph # 60-0747

Throttle cable for dual cable throttles 68 and later 43"

Throttle cable for TR6 & TR7V w/ low bars 40" long  1968- 77

Throttle cable for TR6 & TR7V w/ US bars 43" long 60-1806 1968- 77

Throttle cable for 1978  TR7V  Tiger w/ US bars 43" long

Choke cable , upper, 1973 later 750 Bonneville, 60-4127

Choke cable , lower, 1973 later 750 Bonneville, 60-4128

Choke cable , 11 " , 1973 later 750 TR7V Tiger

Throttle cable, Mark II carbs, top cable 23". Only works with threaded throttle 78-79

Throttle cable, Mark II carbs, lower cable from junction to carbs

Clutch cable 47 " long fits 68 and later 650s

Clutch cable 50 " long fits 68 and later 650s

Clutch cable 45 " long fits 73 and later 750s

Clutch cable 51" long fits 73 and later 750s

Clutch cable boot

Tach cable fits 71 and later models

Speedo Cable fits 71-78  models w/ Smiths instruments

Speedo Cable fits 78 & later  models w/ Veglia instruments. 5'11" long

Brake cable with brake switch front conical hub models 41" 71-74 650s

Brake cable retainer for front fender with hole, and some fork trees, 1971-72 models

Spring, front brake, conical hub

Brake cable bush, front conical hub models

Brake cable bush, front conical hub models

Custom master cylinder, with lever, banjo bolt, washers and brake light switch. 13mm dia. piston. Will work with stock USA banjo fitting but NOT with UK short threaded hose # (60-4177)

Images to left show the master cylinder with a Ducon switch for HI-LO and Horn.

Click images on left for larger view

Replica Wipac Ducon switch for Hi Lo beam and horn. Slides over the end of the bars and is secured with a grub screw. Wires are about 19 inches.

$14.00 ea

Replica Wipac Tricon switch for Hi Lo beam , kill button and horn. Slides over the end of the bars and is secured with a grub screw. Wires are about 19 inches.

Master cylinder assembly, front, stainless steel body, chrome lever, 1973 to 1978. UK

Master cylinder assembly, front, stainless steel body, chrome lever, 1979 and later. UK

Master cylinder assembly, rear, stainless steel body, 73- up. UK

Reservoir, master cylinder, nylon

Master cylinder reservoir mount, rear, with nipple

Master cylinder reservoir, rear

Fitting, rear brake reservoir, feed line

Master cylinder body complete with internals, front or rear, stainless steel. UK

Aluminum crush washer for brake banjo bolt,

Master cylinder filler cap, plastic.

Master cylinder reservoir diaphragm

Gasket, master cylinder cap

O ring master cylinder reservoir

Decal master cylinder filler cap

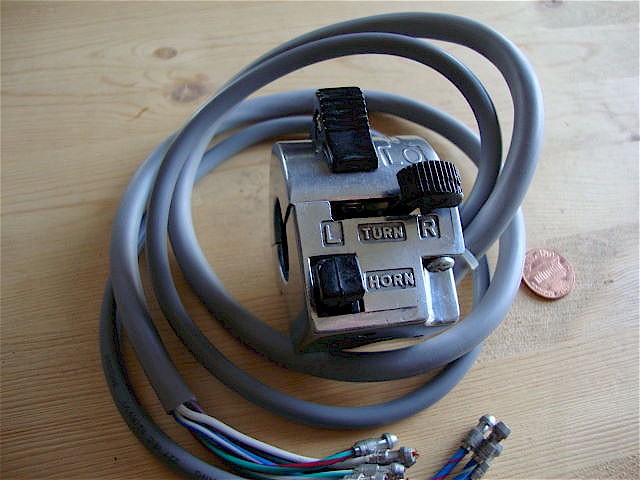

Switch gear LH, all 1971-1975 models, reproduction

Switch gear RH, all 1971-1973 models with drum brake, reproduction

Switch gear LH, 1976-1978 models, reproduction

Switch gear RH, 1979 on kick start models. reproduction

Rubber blanking plug for threaded mirror hole

Stainless steel socket headed cap screw set for lever switch housings. 8 screws and washers. Fits 71-72 drum brake models.

Stainless steel socket headed cap screw set for lever switch housings. 8 screws and washers. Fits 73-75 disc brake models.

Brake lever disc models, chromed steel

Clutch lever, drum models, polished alloy. UK made

Brake lever, drum models, polished alloy. UK made

Clutch lever, drum brake models, alloy

Brake lever, drum brake models, alloy

Cable adjuster and lock ring 71- up

Pivot screw, brake lever, disc models

Pivot screw, drum brake lever 71-72 and clutch lever 71-74

Lock nut for clutch and brake lever pivot screws

Actuating plunger front master cylinder

Screw, front brake switch actuator

Switch console lever. 3 position OFF/ON/OFF

Lever, switch console

Lever, switch console, black, 2 position.

Master cylinder brake hose nut cover

Right angled snap ring pliers. Reaches deep to remove clips from master cylinders.

Master cylinder rebuild kit, rear

Master cylinder rebuild kit, front

Chrome caliper cover, front only

Decal for caliper cover

Caliper cover mounting screw, stainless

Caliper bleed nipple

Caliper pistons, stainless steel, pair

Caliper seal rebuild kit, fits front or rear

Brake pedal pivot bolt, OIF drum brakes

Rear brake operating rod. Stainless steel. 1971 and later models with conical rear drum brake.

Brake rod adjuster nut

Brake hose, lower front, 13" long

Brake hose, top front 12" long USA

Brake hose, top front 6 1/2 " long UK

Brake hose rear, early type 6 7/8" long

Brake hose rear, late type. About 21 inches long

Hose for brake reservoir

Brake tube, front caliper to hose

Brake pad set with cotter pins

Brake shoe set, conical rear hub, 1971-1974 650,750

Brake shoe set, front, models with 8 " conical hub 1971-74 650's

Brake shoe return spring, front conical brakes 71-72. Bike takes 2.

Brake shoe return spring, rear conical brakes 71-74.

Grimeca alloy caliper. Replaces 60-4101. About 2 lbs. lighter than stock. Pads included

Caliper seal rebuild kit, Grimeca

Brake rotor, 4 hole, front or rear, iron

Brake rotor, 4 hole, front or rear, hard chrome

Rear brake lever 71- some 72 models

Rear brake lever some 72-73 models

Rear brake lever 74-75 models

Rear brake arm disc models

Rear brake lever spring, disc models

Twist grip cable stop
